Handicare 1100 Stair Lift

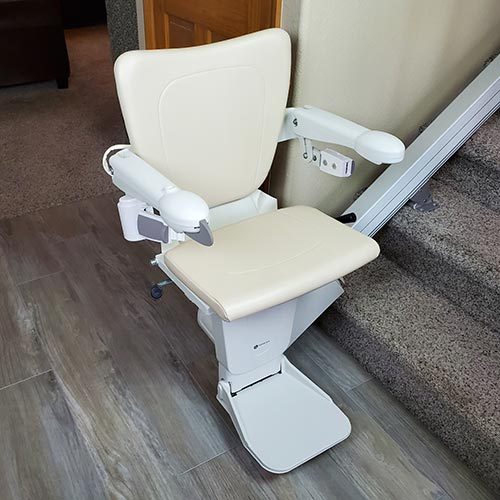

Handicare 1100 stair lift unfolded

The 1100 stair lift is Handicare’s premier model. Safety and usability is what sets the 1100 apart. It comes standard with a retracting seatbelt, safety sensors on the footrest, automatic end stops, an emergency stop switch, and a key switch to prevent use by children.

The design of the 1100 makes it almost maintenance free. The chair moves up and down the rail using a patented friction drive system that never requires grease.

Power folding footrest and power swiveling seat are optional equipment which eliminates the need for the user to bend down to fold the footrest up and swivel the seat. The 1100 also comes standard with a continuous charge strip. The continuous charge feature allows the unit to charge at any point on the rail, rather than just at the top or bottom of the rail.

Standard Features

  • Continuous charging
  • Patented greaseless friction drive
  • Manufacturer 10 year warranty on the motor
  • 2 Year warranty on all other parts
  • Options HME 1 year Expert Warranty on Labor

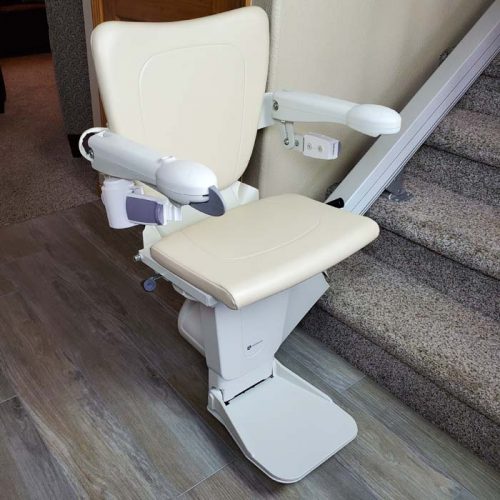

  • Folding foot rest, seat bottom, and arm rests so there is a clear passage for those still climbing the stairs
  • Adjustable seat height that reduces the difficulty of getting in and out of the seat
  • Retractable seat belt that is stored neatly when not being used
  • Easy manual swivel seat for safe loading and unloading at the top of the stairs
  • Set of 2 remote controls to send the lift up and down the stairs without a rider
  • Obstruction sensors on the footrest and chassis to prevent collision and injury
  • Key switch to prevent unauthorized use
  • Battery operated so chairlift will operate when there is a power outage

Optional Features

  • Power folding footrest
  • Power swivel seat

Technical Specifications

  • Capacity – 300 lbs.
  • Width between arm rests – 17.5″
  • Room taken up on steps when folded – 13″
  • Seat height – 17″ – 20.5″
  • Drive system – Greaseless friction drive
  • Required power supply – Plugs into standard 120V AC outlet
  • Control Circuit  24V DC
