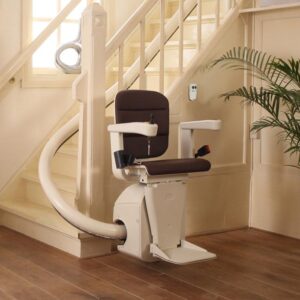

A premium quality curved stair lift – the Otolift Modul-Air Smart is designed to provide smooth, comfortable, and minimally intrusive access on virtually any staircase. Its innovative modular rail system adapts to wide, narrow, and spiral staircases while using a small diameter, single rail, helping to preserve valuable stairway space. The slim, elegant design and folding seat, arms, and footrest allow the stairs to remain usable while the lift is parked.
The Otolift Modul-Air Smart is convenient and easy to use. A smart dashboard built into the armrest provides a real-time status of the lift, while the standard power folding footrest eliminates the need to bend down. An optional power swivel seat and reverse-drive technology provide added flexibility on tight or narrow curves. Quiet, smooth operation, obstacle detection, and battery backup provide safe and dependable operation.
Standard Features
- 2 Year Manufacturer’s Parts Warranty
- 1 Year Expert Warranty on Labor from Options HME Stair Lifts
- Power folding footrest
- Smart dashboard built into armrest
- Folding foot rest, seat bottom, and arm rests so there is a clear passage for those still climbing the stairs
- Retractable seat belt that is stored neatly when not being used
- Easy manual swivel seat for safe loading and unloading at the top of the stairs
- Two wireless remote controls to send the lift up and down the stairs without a rider
- Obstruction sensors on the footrest and chassis to prevent collision and injury
- Battery operated so chair lift will continue to operate when there is a power outage
- In-rail charging points located at top and bottom of rail
Optional Features
- A variety of top and bottom parking positions, allowing the lift to be parked around the corner or minimize rail a the bottom landing
- Power swivel seat (also enables reverse drive for narrow stairways)
- Additional charging points to allow for parking on middle landings
- Additional remotes
- Synthetic leather in cream white or brown
- 4-point or 5-point safety harness
Technical Specifications
- Weight limit – 275 lbs.
- Seat Bottom – 17″ wide x 16.5″ deep
- Seat Back – 16″ wide x 16″ high
- Folded Thickness – 15″
- Seat Height 18.9″
- Speed – 16 feet/min.
- Drive system – Rack & Pinion
- Required Power Supply – Plugs into standard 120V AC outlet
- Control Circuit – 24V DC
- Conforms to ASME A18.1 Safety Standard for Platform Lifts and Stairway Chairlifts
